Thermo-Compression Bonding

Thermo-compression bonding is a solid-state diffusion joint — moderate temperature, sustained pressure and controlled dwell — not a fusion weld. It is the standard for gold or aluminum wire onto bond pads, flip-chip die attach, TAB inner-lead frames and precision lead-frame work on hybrid microelectronic assemblies. Because no melt forms, mating-surface cleanliness, tool-tip temperature uniformity and applied force become the controlling variables rather than pulse energy.

Send Sample for Evaluation Compare Processes

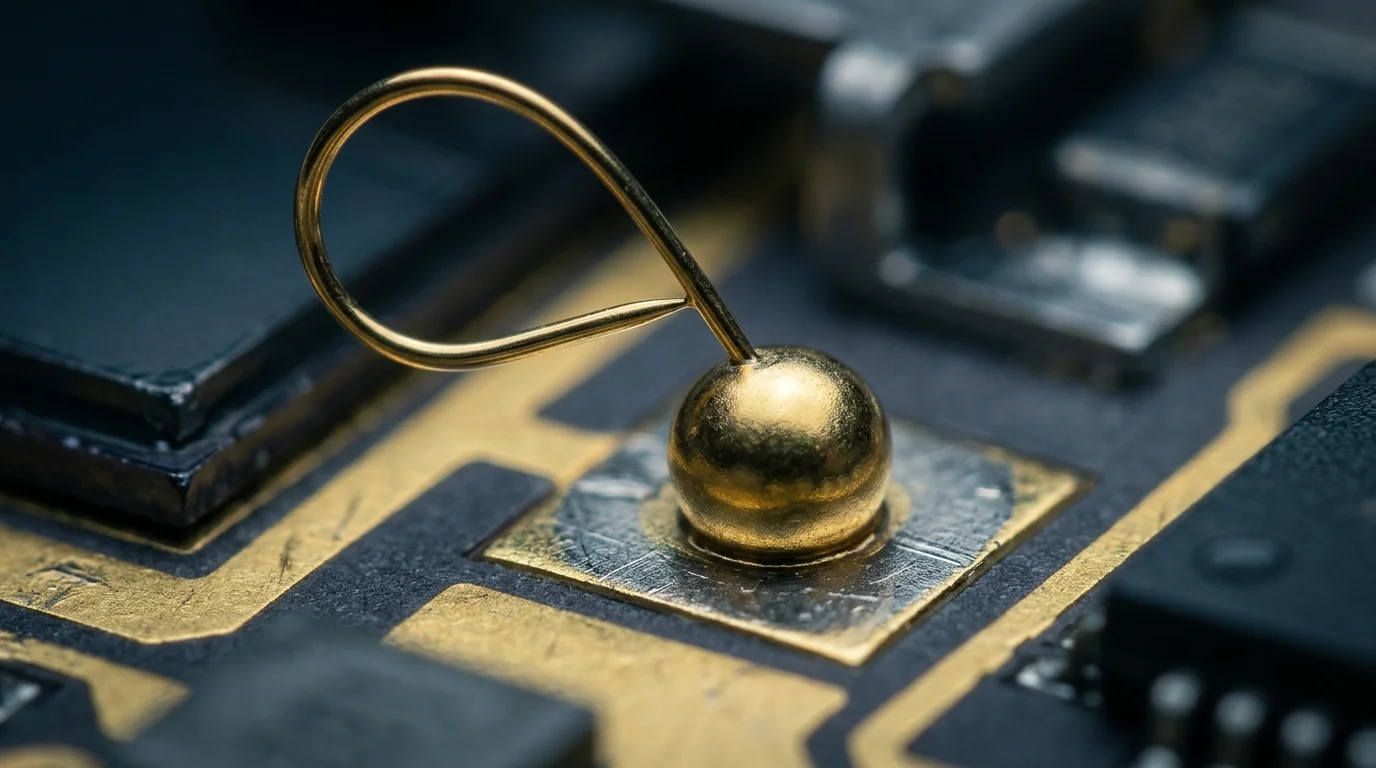

Gold ball bond on a chip's metal pad with a fine gold wire looping up, close-up showing the surrounding gold interconnect traces of a hybrid microelectronic assembly

Typical joints

Typical thermo-compression bonding parts and joints

Thermo-compression bonding concentrates on a narrow set of joint forms across microelectronic and hybrid module assembly:

Gold ball bonds — fine gold wire to aluminum or gold pads on IC die and MMIC substrates
Aluminum wedge bonds — aluminum wire to power-device pads and thick-film substrates
Flip-chip die attach — solder-bump or gold-stud die placed onto laminate or ceramic substrates
TAB (tape automated bonding) — copper or gold-plated inner-lead frames to die pads
Hermetic package lid seals on ceramic or metal packages for hybrid microwave and MEMS modules

Process fit

Which process fits thermo-compression bonding

Resistance spot

Adjacent tack welding of leads and terminals

Resistance spot shares the mechanical logic of TC bonding — clamped force plus a short controlled pulse — but delivers a fusion tack rather than a diffusion bond. It fits adjacent work around a TC joint: tacking small leads into position ahead of bonding, and low-mass wire-to-terminal joints on the surrounding assembly where a fusion tack is acceptable. See the resistance spot line →

Pulse arc / Micro TIG

Package lug work, larger terminations, hybrid repair

Pulse arc / micro TIG covers larger cross-section terminations around a TC-bonded region: package lug welding, connector-shell joints, and repair welds on hybrid assemblies where the TC bond is already formed and downstream structural joints still need to be closed. Weld visibility during setup helps on one-off geometry. See the pulse arc line →

Laser

Hermetic package lid sealing after TC bond completion

Laser handles the hermetic seal weld on ceramic or metal packages once TC bonding inside the package is complete. Autogenous seam welds close the lid-to-body joint without disturbing wire bonds and die attachments beneath. Laser also appears on hybrid TC bonds where a localized pulse replaces a heated tool on very small, difficult-access sites. See the laser line →

Dedicated production TC bonders are a separate machine category MicroWeldPro does not supply — this page covers the fusion micro-welding around the TC joint on the same assembly line.

What’s hard

Common difficulties in thermo-compression bonding

TC bond failures cluster around a few interfacial problems, not the surrounding structural welds:

Surface contamination kills the bond — oxide, oil or plating residue on pad or wire blocks atomic contact; cleanliness matters more than any tool setting.
Over-pressure damages pads and dielectric — force pushed up to compensate for a weak bond can crack the pad, punch through metallization or crush the interlayer dielectric beneath.
Tool-tip temperature uniformity — hot and cold spots on the heated tool produce uneven diffusion across the footprint; tool wear and tip residue drive this.
Gold–aluminum intermetallic (“purple plague”) — Au–Al intermetallic phases grow with time and thermal cycling in dissimilar-metal wire/pad systems and eventually crack the joint.
