Filtration and Mesh Welding

Filtration and mesh assemblies cover a broad class of industrial parts — filter elements, screens, sieves, catalyst supports and mesh-based sound absorbers — where woven or wire mesh has to be sealed at its edges, joined to a rigid frame, or stacked in layers and tacked together. Three difficulties dominate the process side of this work: burn-through on thin mesh, where the parameter window between under-fusion and a hole in the weave is narrow; large-area consistency across long production runs, where a small parameter drift on any single weld opens a leak path in an otherwise sound element; and multi-layer contact resistance variability, where a loose stack and a tightly clamped stack weld differently even at nominally identical settings.

Send Sample for Evaluation Compare Processes

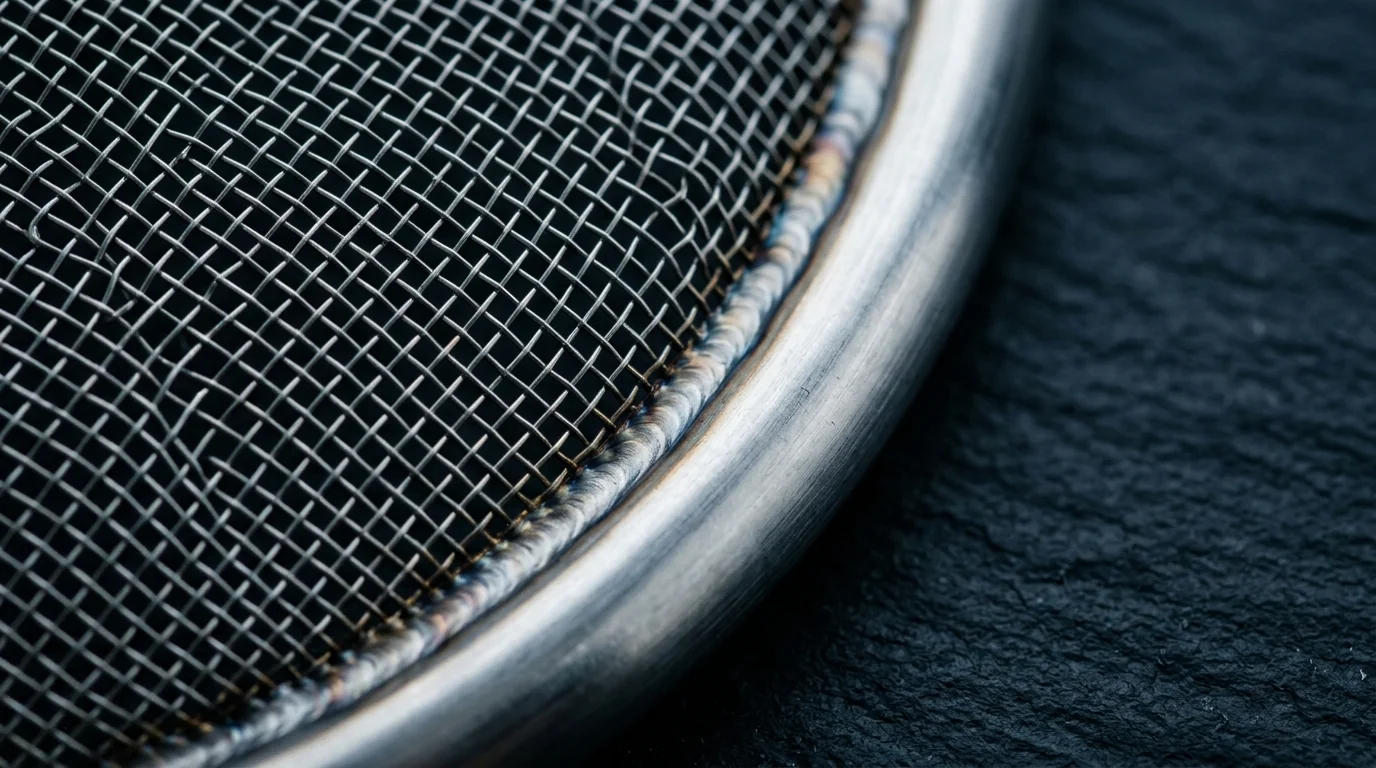

Close-up of a woven stainless-steel wire mesh disc edge-sealed to a polished stainless-steel perimeter rim on a dark surface

Typical joints

Typical filtration and mesh parts and joints

Filtration and mesh work groups into a small set of recurring joint forms across cylindrical filter elements, flat screens, pleated media packs and fabricated frame assemblies:

Edge sealing and hem welds on mesh sheets — continuous seams or spot tacks that close loose wire ends and prevent fraying at the perimeter
Mesh-to-frame joints — mesh cloth attached to a solid ring, backing plate, extruded profile or fabricated support frame
Multi-layer mesh stack welds — two to five mesh layers tacked at the edges or at internal spots for pleated filter packs and combined coarse/fine media
Cylindrical filter axial seams — rolled cylindrical elements welded along the seam where the mesh meets itself, running the full length of the element
Mesh-to-end-cap seals — end cap discs welded to the ends of cylindrical filter elements, in some cases with a hermetic requirement
Reinforcement band tacks — periodic tack welds fixing support ribs, spacer bands or stiffener rings to an otherwise flexible mesh body

Process fit

Which process fits filtration and mesh welding

Resistance (spot and seam)

Edge hems, cylindrical seams, stack tacks, frame attachment

Continuous seam welding for edge hems and cylindrical axial seams runs off resistance seam heads with rolling electrodes; spot welding tacks multi-layer stacks, frame-to-mesh at intervals, and reinforcement band attachment. Parameter-locked recipes hold well across long batch runs on a fixed mesh grade and wire diameter combination. See the resistance line →

Laser

Fine-wire mesh, thin-mesh work, hermetic end caps

Fine-wire and thin-mesh work where any electrode force would deform the weave, and hermetic end-cap seals on cylindrical elements. Low heat input keeps the fusion zone tight and reduces burn-through risk on thin mesh, and repeatable pulse energy holds large-area consistency across long production runs better than a resistance recipe that drifts with electrode wear. See the laser line →

Pulse arc / Micro TIG

Heavier frame joints, repair, coarse-mesh screen frames

Heavier frame-to-mesh joints beyond the resistance parameter window, repair welds on damaged filter elements, and larger cross-section screen frames. Filler-added or feathered-pulse work is useful where a coarse-mesh screen bonds to a fabricated frame with visible torch access. See the pulse arc line →

Mesh grade, wire diameter and stack compaction shift the burn-through window from one design to the next and the parameter drift budget from one batch to the next; a sample weld on the actual mesh and wire diameter is the reliable way to lock the working point before a full batch run starts. Metallic honeycomb sandwich panels — core-to-face-sheet spot patterns and structural pull-off welds — are a distinct joint family covered on the honeycomb structures application page.

What’s hard

Common difficulties in filtration and mesh welding

Four failure modes recur across most filtration and mesh welding programs, in roughly this order:

Burn-through on thin mesh — fine wire diameters give a very narrow parameter window between under-fusion (a loose joint that lets particles through) and burn-through (a hole in the weave that defeats filtration); precise pulse-energy control and, on resistance, low electrode force with cooled tips keep the wire intact.
Large-area consistency across long production runs — filter elements often run many thousands of welds per shift, and electrode wear on resistance heads plus thermal drift on any process drift the working point out of the burn-through window; a scheduled electrode-dressing cadence and in-process verification are what hold the drift.
Multi-layer stack contact resistance variability — loose versus tight stacks, and clean versus contaminated interlayer contact, change the effective resistance across a stack from weld to weld; force-controlled resistance setups and pre-weld stack compaction reduce the variance.
Dissimilar-metal joints between mesh and frame — SS316L mesh to a nickel-plated frame, or nickel mesh to a steel support ring, run into asymmetric heat balance where one side reaches fusion long before the other; asymmetric electrode geometry, sample-first parameter tuning and where possible a matched frame alloy handle it.

Mesh grade, wire diameter and stack compaction vary widely between filter designs, and parameters that work on one element rarely transfer directly to another. The most reliable way to lock the setup is a sample weld on the actual mesh and wire diameter, followed by a leak-path or particle-retention check on the sample. The evaluation itself is free.
