Compare Benchtop Laser Welders by What Your Shop Has Already Fixed
The difference between these machines is not on their spec sheets. It is in three things you already know the answers to — the supply on the wall, the bench, and the work that comes across it.
You are not missing information. You are missing a conversion — the step that turns what you already know about your own shop into a machine name.
It takes the four benchtop laser welders we build and runs them past your supply, then your bench, then your class of work, in that order. Each pass either removes a machine or tells you plainly that it removed nobody.
Send a part and your three answers
It also says which of the three no spec sheet can answer for you — ours included.
Why Spec Sheets Will Not Compare Laser Micro Welders for You
The step that fails here is not judgement. It is translation.
You can say what you weld in one sentence. It is the thing you are surest of in this whole purchase. You know the alloy, you know roughly where the joint sits on the piece, and you know what is beside it that must not be touched. Nobody has to explain your own work back to you.
The sheets are not written in that sentence. What a specification gives you instead is pulse width, frequency, spot diameter, average power. Every one of those is true, and not one of them is in the language you just used. There is no line anywhere on them that reads back the sentence you would say out loud.
So the thing you are surest of stops working exactly here. That is a strange place to lose your footing — not at the hard part, at the easy part. What fails is a conversion, and it fails in one direction only: your sentence has no way to become a machine name, while every machine name already has a sentence attached that somebody else wrote.
What that costs, and who it costs most. Once the conversion leaves your hands it goes to whoever will do it for you, and what returns is a name with the reasoning stripped off. If the machine is yours to run, that is an irritation. If your signature has to go next to the decision, it is more than that: a decision you cannot repeat to the person who asks you why is a decision you have not actually made.
What this page does with that. It runs the conversion in the open, in three passes, using three facts about your shop that were settled before you started looking. Every step is checkable, and the whole of it is repeatable to somebody else — which is the part you were going to need anyway.
Which Laser Micro Welder to Buy — Start With the Answer You Already Have
Any order of questions gets you to the same shortlist. What changes with the order is what it costs you to find out you were wrong.
The supply is already in your hand. You do not have to weld anything to check it and you do not have to ask us. It is also the single condition here that cannot be settled afterwards by working differently — everything else on this page can bend a little, and this cannot. That is why it goes first. Not because it matters most.
The bench has a physical answer. It is a question you can close before anything ships, with nothing on order and nobody's schedule involved. It goes second because the answer is available immediately and it genuinely does remove candidates.
The class of work only settles on a real part. It goes last for a reason that has nothing to do with importance: it is the single condition here whose honest answer arrives after a weld rather than before. Put it first and everything you decide above it stays provisional until the part comes back.
So the order runs from the answer you have to the answer you do not have yet. Reversed, the sequence still works — it just costs more. You spend the effort on the question that needs a real part, and then find out the supply had already answered it for you.
Laser Welder Power Supply Requirements — 220 V, 60 A, and the Number on Your Wall
One condition you can check today, against machines that each write it down in their own terms.
The number you already have. You have asked, or you have looked, and you can say what that circuit gives you. Hold it against what follows — and notice that what follows is not written in one form, because each machine states this in the terms its own sheet uses.
What this pass can do, and what it cannot. If your wall cannot serve a machine named above, that machine is out, and nothing that happens later brings it back. That verdict is available to you today, before anything is welded, ordered or shipped. If your wall serves every machine named above, then this pass removed nobody and you carry the same candidates into the next one. Both of those are real answers. Only one of them feels like progress, and the other one is the reason people skip this step and pay for it later.
Benchtop Laser Welder Models and the Side You Sit On
The half of this question that a rule can close has already been closed. This is the other half.

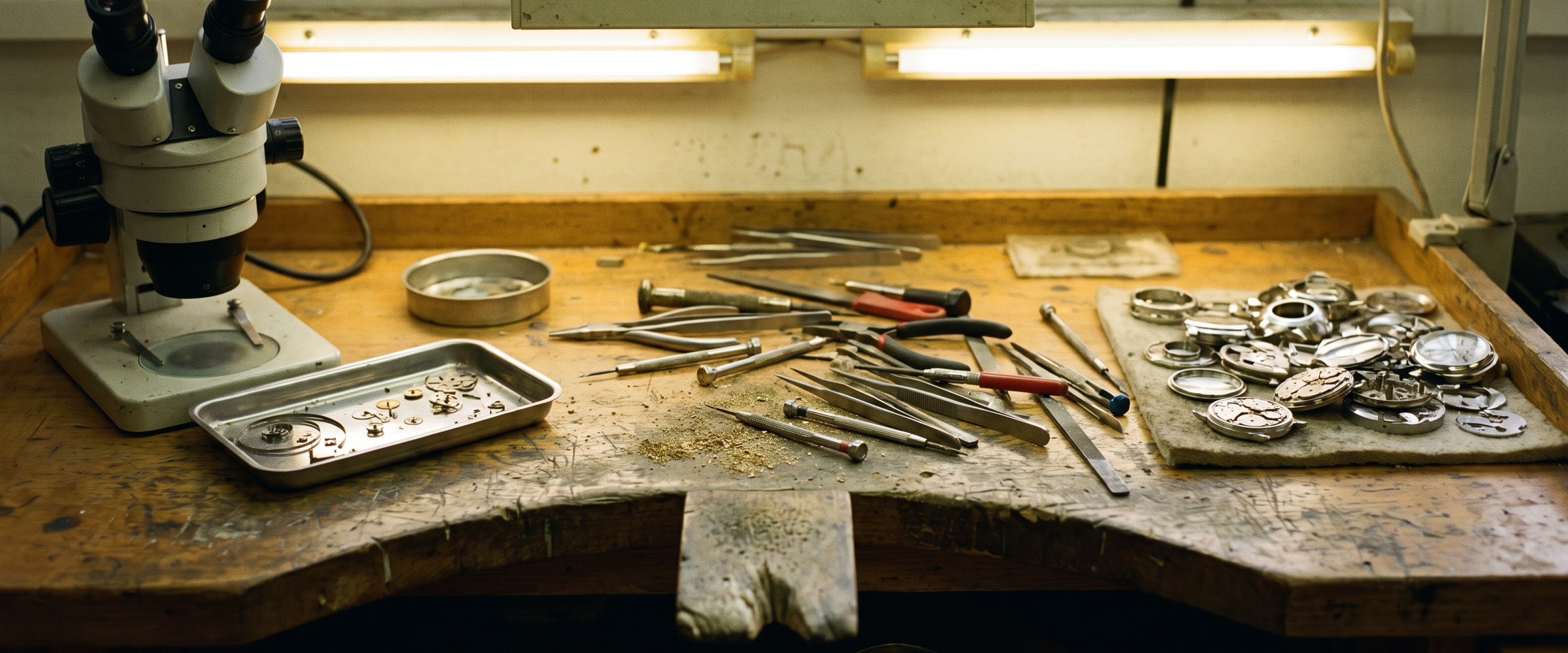

What is left after area is not area. It is which side you work from. Where you sit, which hand the piece arrives in, where the magnification already lives, which end of that bench belongs to the job that runs before yours — all of that was fixed in your shop long before you started looking at machines, and none of it is a length.
And there is no figure for it anywhere, ours included. Every one of these machines states an outline. None of them states which side it is meant to be worked from, and that is not an oversight — it is not a property of the machine at all. It is a property of the station the machine lands on, which is yours and not ours. Anybody who tells you their machine is the right way round for your bench is telling you something they are not in a position to know.
The 3-in-1 Jewelry Laser Welder has a body of 300×340×320 mm. That figure is here for one reason: the usual way to handle an uncertainty about bench space is to let the outline settle it — to assume that a body taking up less room carries less risk. It does not. A body that fits is not the same thing as a station that still works once the machine is standing on it, and no outline, this one included, can tell you which of those you have got.
The area half is arithmetic and it is already answered: the outlines are set out together at a single scale on the quote page. This section does not do it twice. What it hands you instead is the half that arithmetic cannot close — and the reason the next pass turns from your room to your work.
Laser Welder Model Comparison — Four Machines Against Four Kinds of Work
Read the middle column first. That is the reverse of how a specification is written, and it is the direction this page works in.
Three passes in, what remain are the machines your building will feed and your bench will hold. What separates them now is not a property of the machines. It is what comes across your bench, and you have been able to describe that since before you opened this page.
| Machine | If this is your work | And what it costs you |
|---|---|---|
| QCW Jewelry Laser Welder | Thin-wall and heat-sensitive parts, low heat input, at line cadence. | Its pulse floor is 0.2 ms; the EU Style and the High Value Type both start shorter. |
| 3-in-1 Jewelry Laser Welder | One station has to cover it all — the piece gets cut and shaped there as well as joined. | Of the three that publish an average-power range, its ceiling is the lowest — its top setting is where the QCW's range begins. It will not put more into a joint than that. |
| EU Style Jewelry Laser Welder | Fine tack welding, small spot. | Its pulse stops at 5.0 ms — work that needs the beam to stay on the joint longer than that is not work for it. |
| High Value Type Jewelry Laser Welder | If you can't see it, you can't place it — multiple operators, long sessions. | You are buying the seeing as much as the welding; work that never has to be judged that closely will not use it. |
Four descriptions of work, and beside each one the machine that description was drawn around. If one of those middle entries is a fair account of what crosses your bench, the name beside it is your answer and the entry beside that is what you agreed to when you took it.
What the table does not do. It does not rank them. There is no column here for which machine is better, because there is no honest way to fill one in — better at what, on whose bench, against which part. Every one of these four has work it should be kept well away from, and the middle column is where you find out whether that work is yours.
Cooling — a Line Every One of These Benchtop Laser Welders Answers, and Not With a Number
Every one of them states how it handles its own heat. What follows from that answer is different in each case.
The room this machine has to live in is one you already have, and it is the last of the four conditions. Whatever is still standing here is what this page can honestly hand you.
Every one of these four answers this line, and none of them answers it with a figure. There is no column here to sort — just an arrangement, and an arrangement is either one your room can live with or one it cannot. It goes on being that long after everything else about the purchase has stopped mattering.
When Two Benchtop Laser Welders Are Still Standing
Three conditions do not always leave one. When they leave two, it is usually because both of them fit.
Two is a normal place to end up. It does not mean the page ran out of things to check. It means your supply, your bench and your class of work all came out the same way twice, which is a real result and a fairly common one.
What will not separate them. Another figure. If both machines cleared all three conditions, then whatever still divides them is narrower than the difference between two settings on either one of them, and no amount of further reading closes a gap that size. This is the point where more specification stops being information and starts being reassurance.
What will. One real part, welded on both, in the state the part will actually be in — same alloy, same section, whatever is attached to it still attached. That is not a sales answer. It is the only instrument left: the two either come apart on your work or they do not, and nothing on a sheet is going to settle that for you.
And if the two have already come apart in your head and you know which one it is, then what is left is not a decision, it isa sheet with your supply, your bench and your part written on it.
Leaving This Comparison With One Machine Name
That was the point of the page, and it is a reasonable thing to expect from one.
You came here for a name.
If the three passes left one standing, then you have it, and you have something the name on its own would not have given you: the working. You can put it in front of whoever asks why that machine and not another, and the answer is three facts about your own shop rather than a preference you have to defend.
If more than one is still standing, then the page has done what a page can do, and the rest is a weld. Send one real part in the state it will actually be in and the answer comes back attached to metal rather than to an argument.
